Installing eSIM(s) On An Apple Device

This help guide walks you through the steps required to install an eSIM on an Apple Device, the guide was created using the most recent version of Apple software available at the time, IOS 16.3.

Watch the video: https://vimeo.com/906773314

There are two install options offered in this help guide, either “install using a QR code” or “manual install

Before starting the install, it is important you have the following three components:

  • A strong internet connection – Ideally using a Wifi network or a good 4G connection
  • An eSIM compatible device – If unsure, a list of compatible devices is provided here
  • The device is not locked to one particular network – If unsure, an article has been provided to talk you through how to determine the “locked / unlocked” status of a device, click here

Don’t forget to turn on “Data Roaming” after install!

Install Using A QR Code

There are two options available when scanning the QR code to install an eSIM;

Step 1.

Either

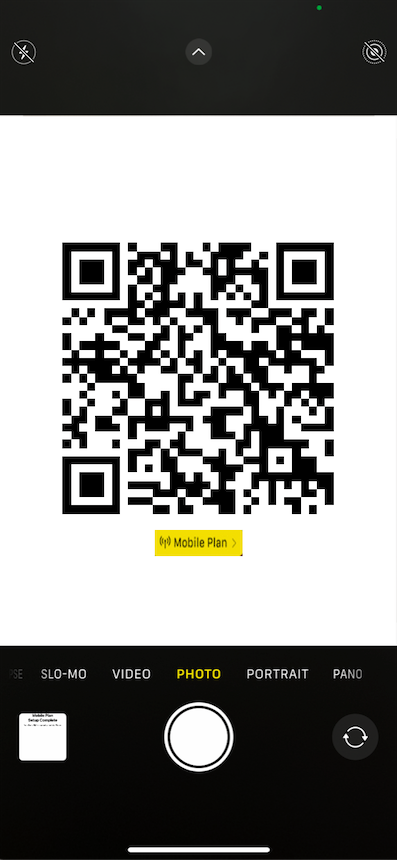

1.1) Open the camera on your device > Scan the QR code > Tap “Mobile Plan”


Or

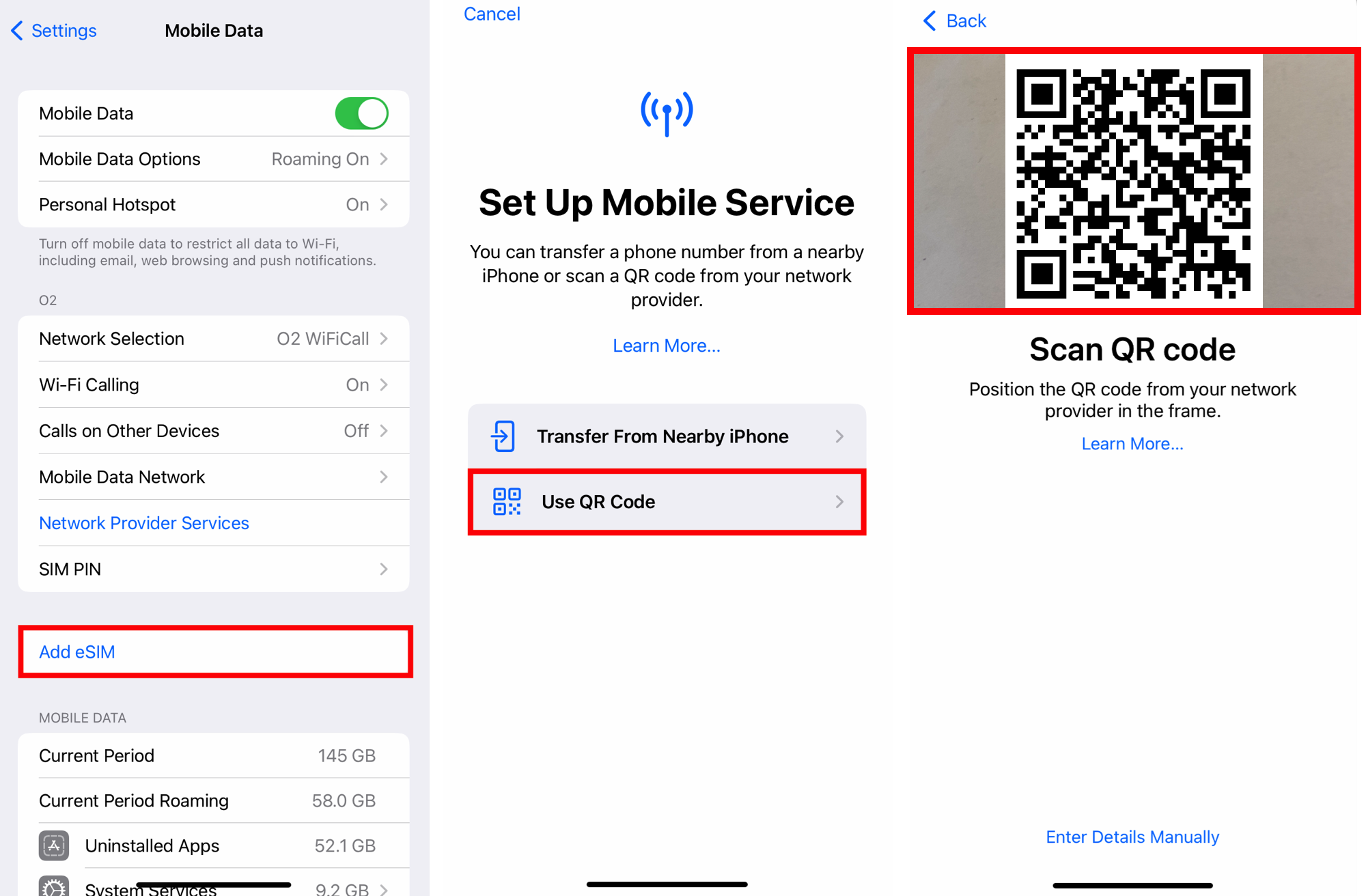

1.2) Go to “Settings” > Tap “Mobile / Cellular Data” > Tap “Add eSIM” > Tap “Use QR Code” > Scan the QR code provided

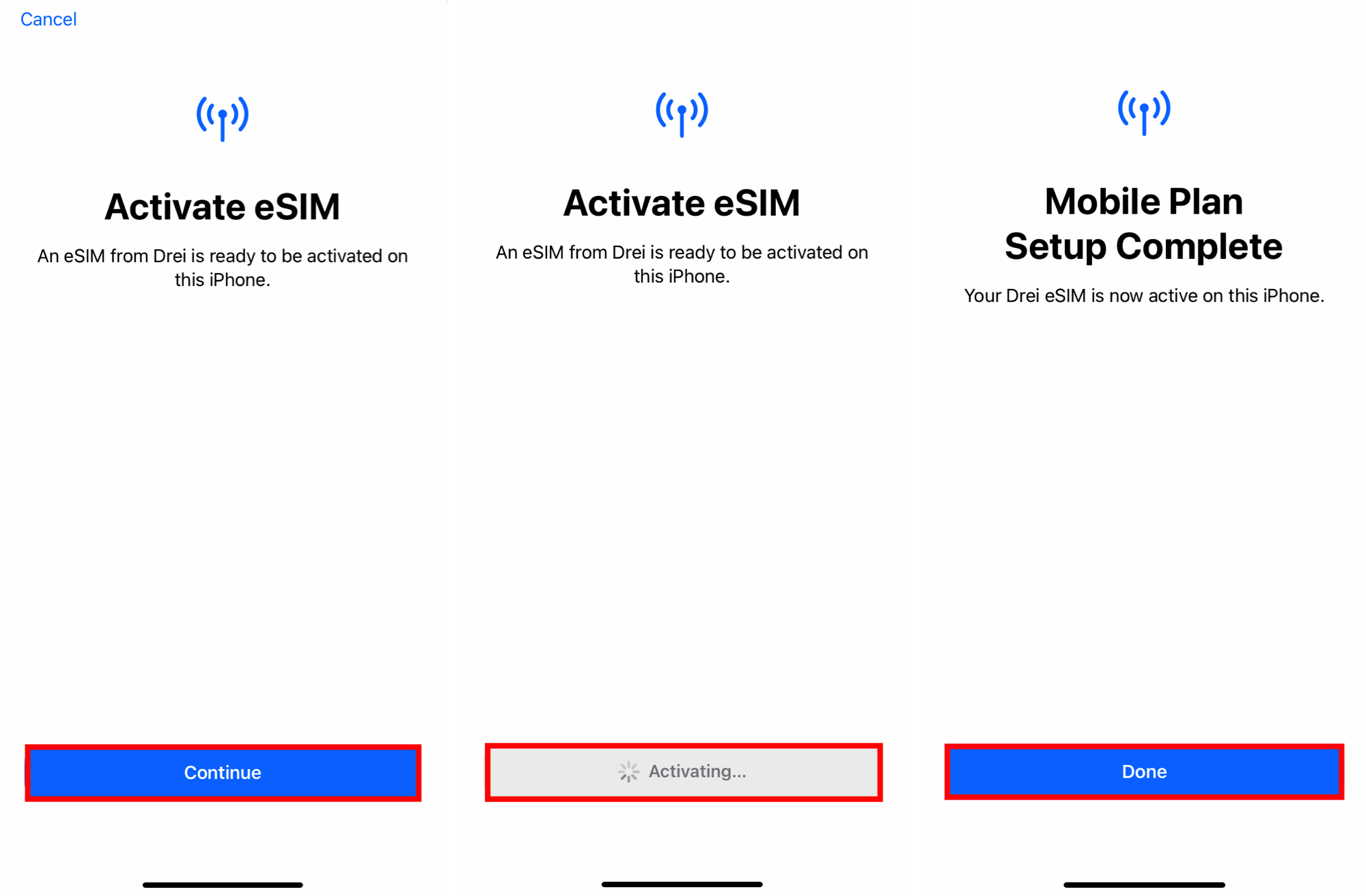

Step 2. Tap “Continue” > Allow up to 10 minutes for the eSIM to Activate > Tap “Done”


Step 3. There are two options available at this stage, we advise proceeding with option 3.1)

Either

3.1) Tap “Continue” and then move to Step 4.

or

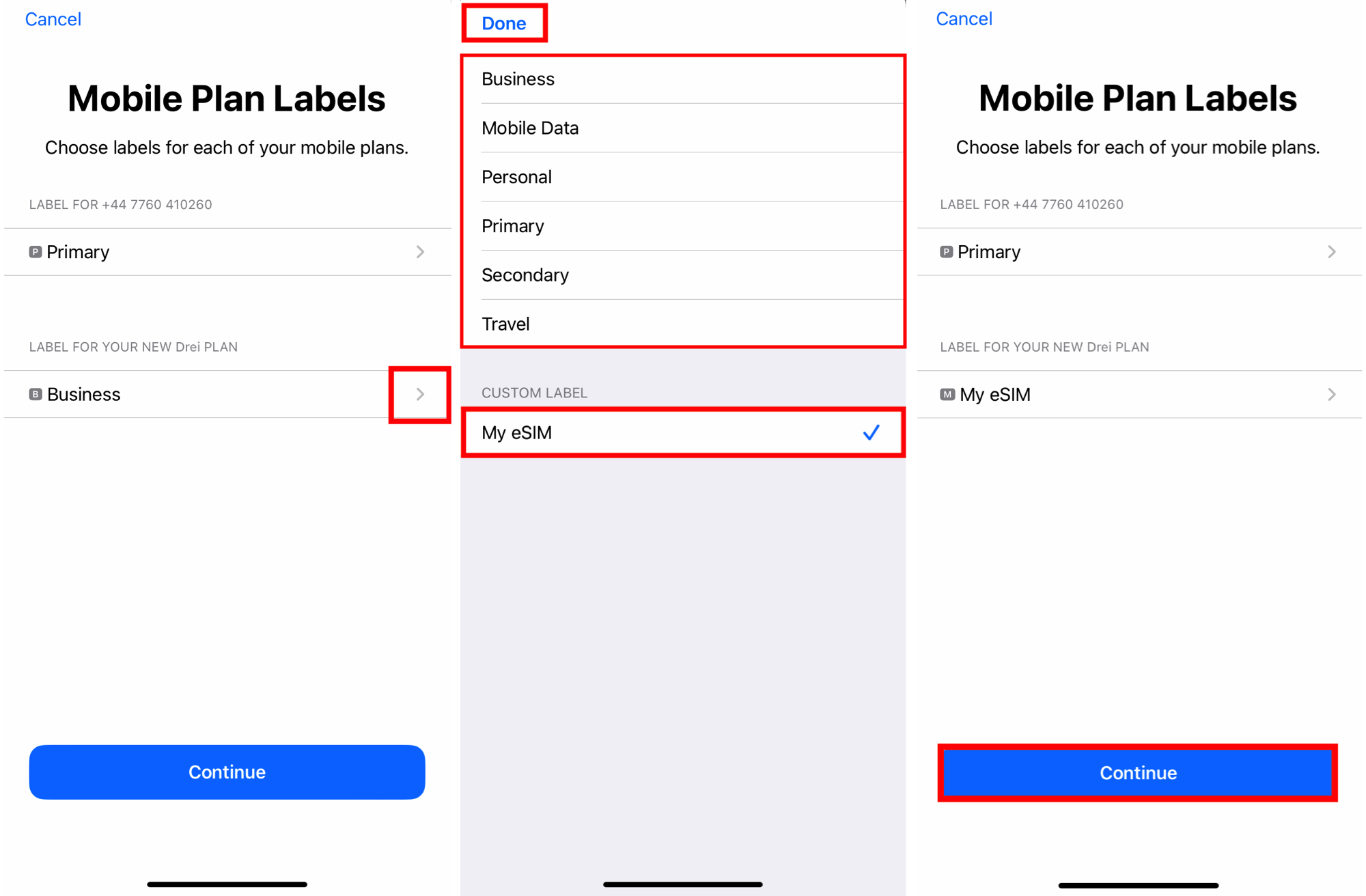

3.2) You have the option to modify the “eSIM Label” (the name of the eSIM) instead of using the default name.

If you would like to modify the eSIM label before moving to the next step;

Tap “>” (the right hand arrow) > Then either choose one of the preset label’s or type the name you want to use in the “Custom Label” box > Tap “Done” > Tap “Continue”

In this example the name of the esim was changed to “My eSIM” using the custom label box.

Please note; Option 3.2) won’t be offered to you if you have more than one eSIM already installed on your device, so a custom label can only be altered after the SIM install is complete.

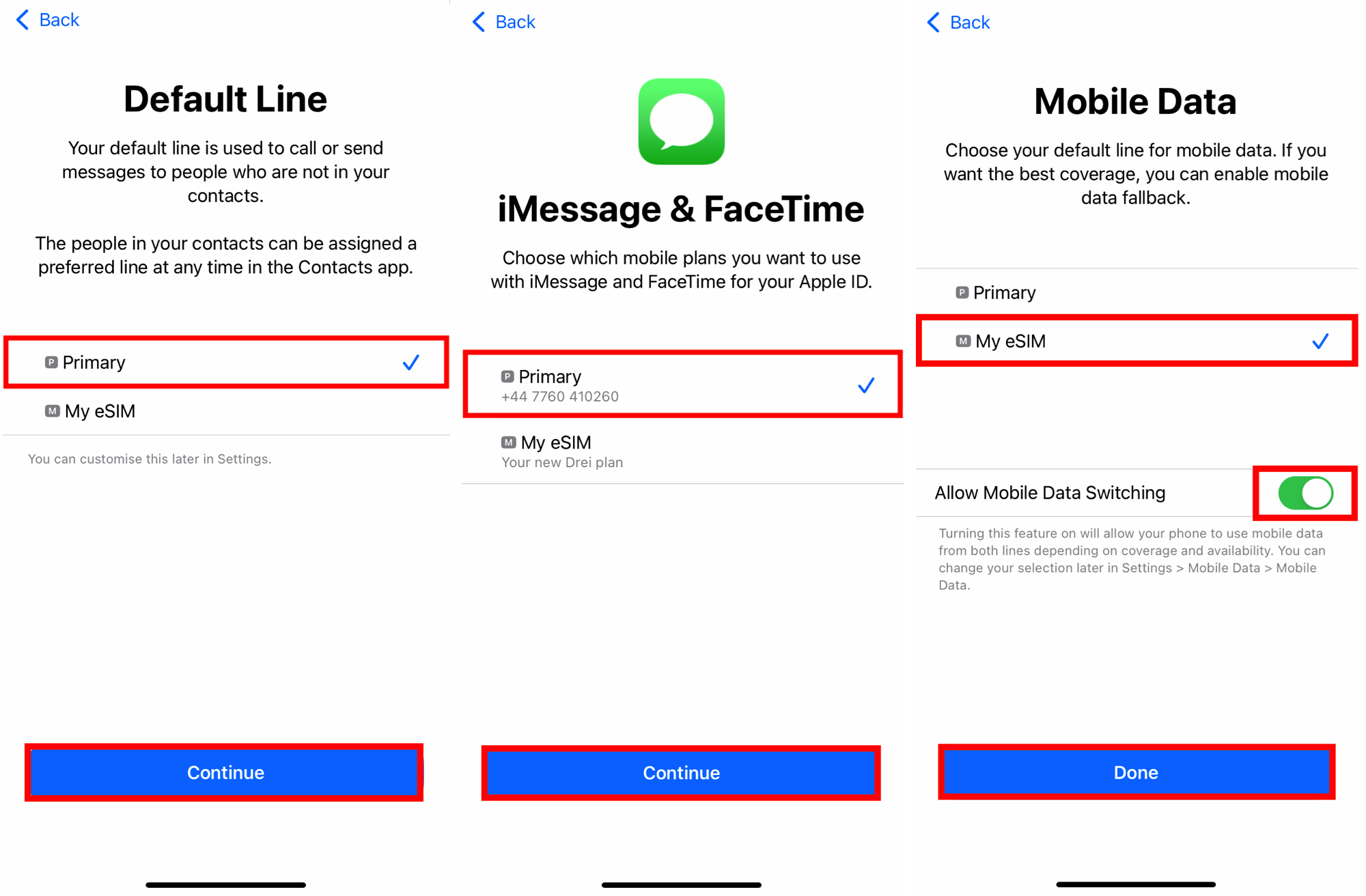

Step 4. Configure the following settings as suggested:

  • Set Default Line to “Primary” > Tap “Continue”
  • Set iMessage & FaceTime to “Primary” > Tap “Continue”
  • Set Mobile Data to your previously chosen esim label, in this example “My eSIM”

Allow Mobile Data Switching is defaulted to off, choose you preference using the toggle > Tap “Done”

“Allow Mobile Data Switching” will allow your device to use mobile data from both lines depending on coverage and availability. You can change your selection later in settings.


Step 5. The eSIM is now installed and configured.

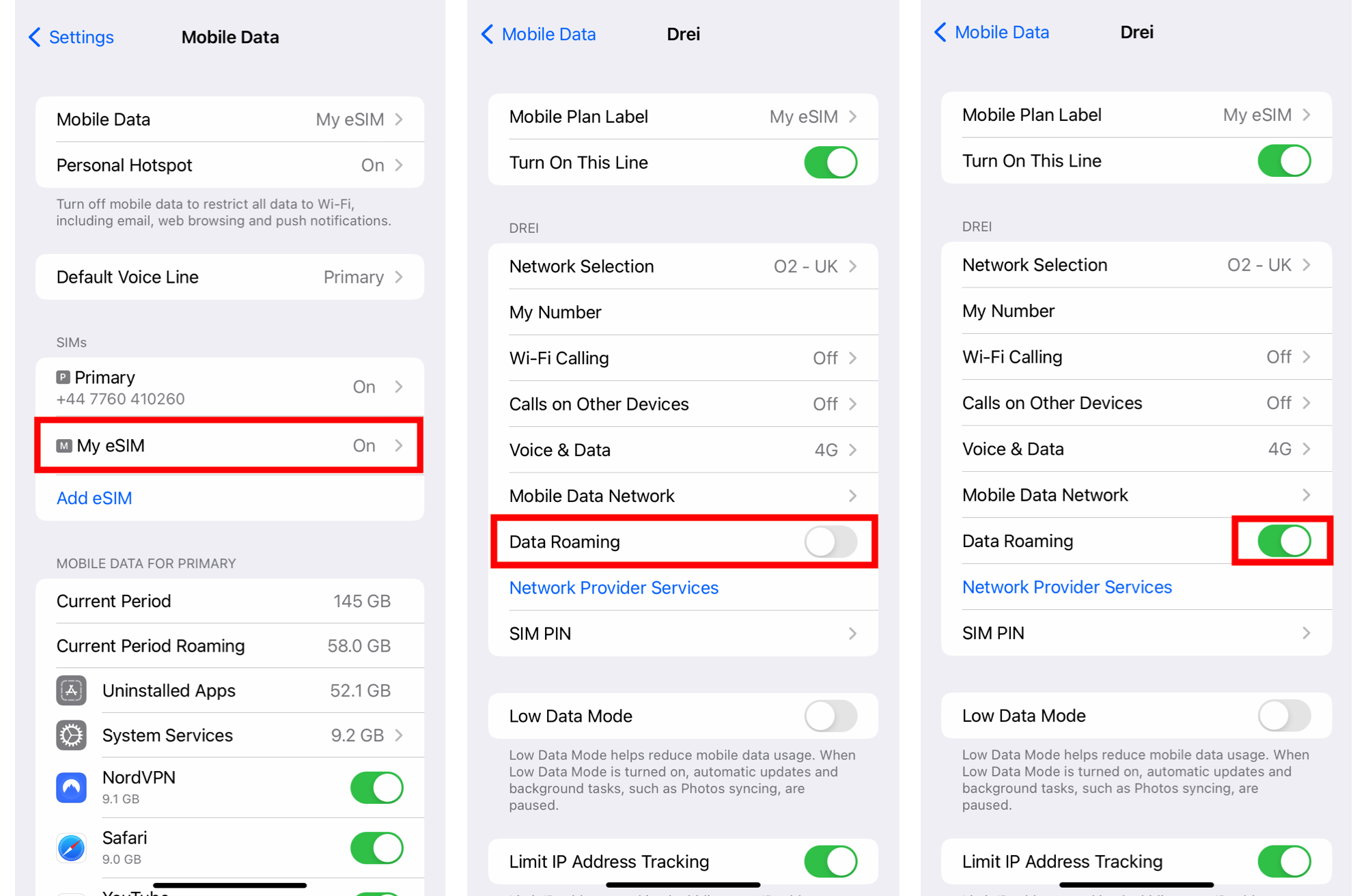

Important: Data Roaming MUST be ENABLED in order for the eSIM to work

Go to “Settings” > Tap “Mobile / Cellular Data” > Select desired SIM > Move the toggle switch to “On”


Don’t forget to turn on “Data Roaming” after install!

Manual eSIM Install

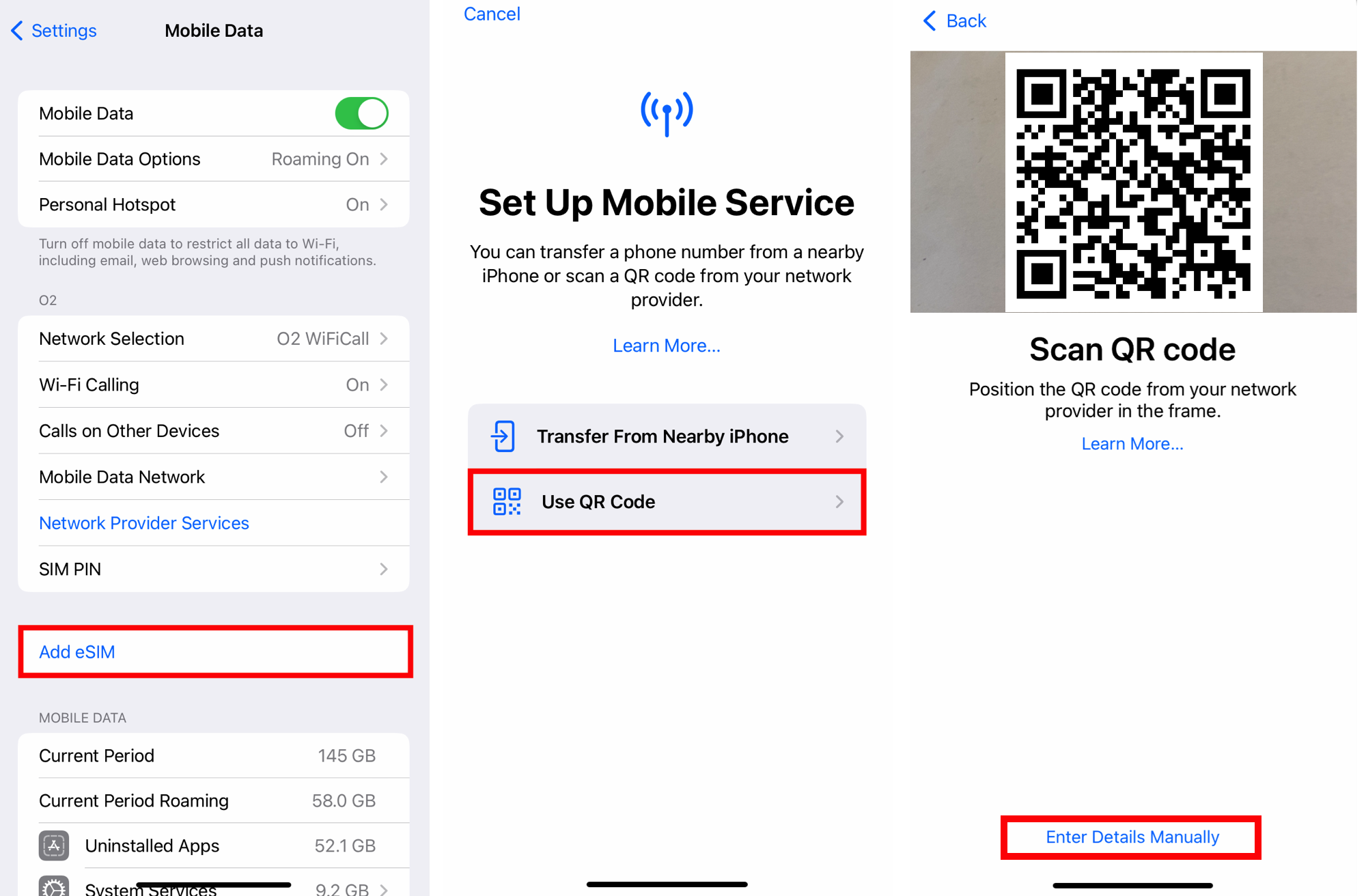

Step 1. Go to “Settings” > Tap “Mobile / Cellular Data”

Step 2. Tap “Add eSIM” > Tap “Use QR Code” > Tap “Enter Details Manually”

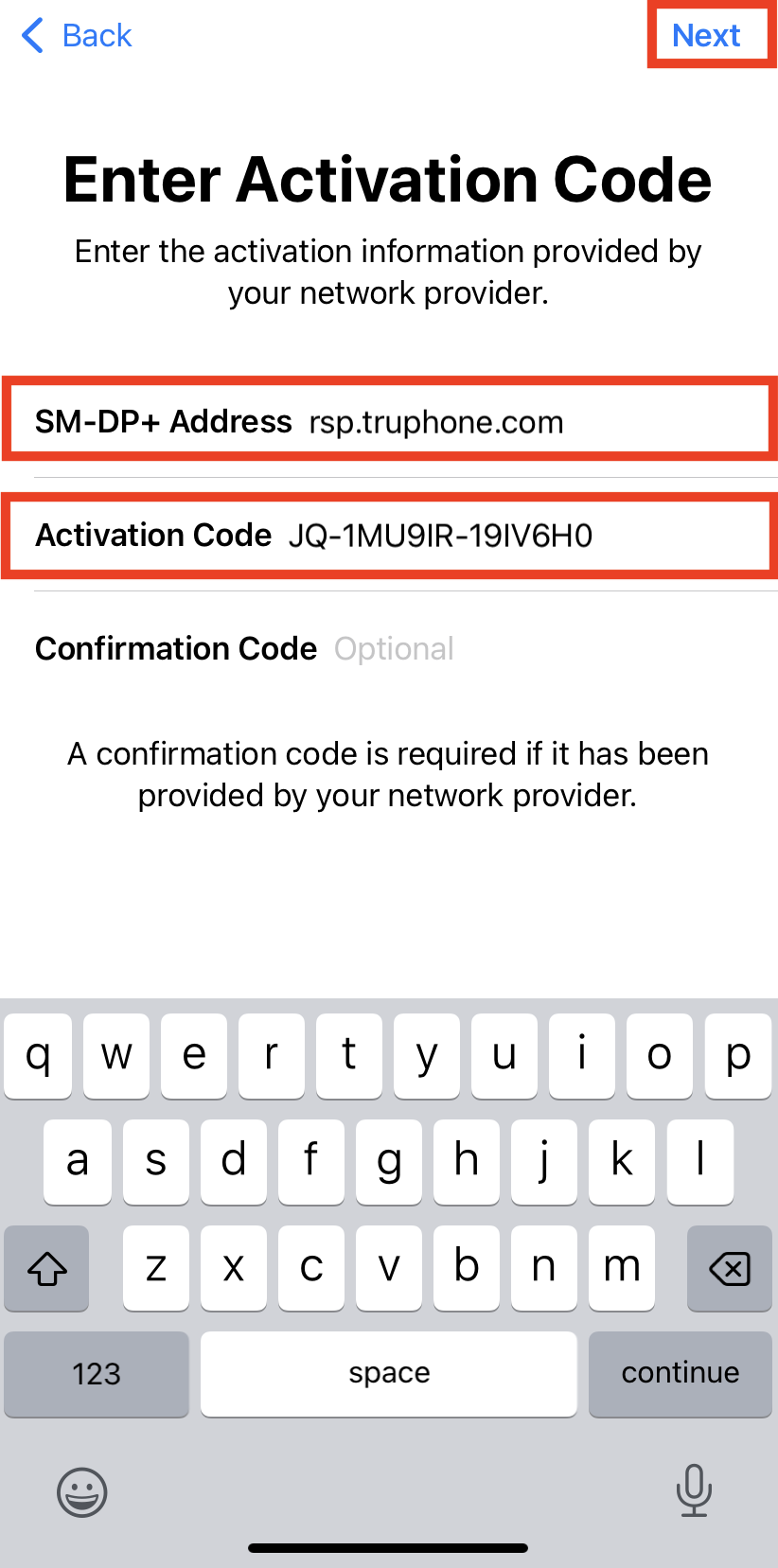

Step 3. Enter the “SMDP Address” and the “Activation Code” provided > Tap “Next”

Leave “Confirmation Code” blank


Step 4. Tap “Continue” > Allow up to 10 minutes for the eSIM to Activate > Tap “Done”


Step 5. There are two options available at this stage, we advise proceeding with option 5.1)

Either

5.1) Tap “Continue” and then move to Step 6.

or

5.2) You have the option to modify the “eSIM Label” (the name of the eSIM) instead of using the default name.

If you would like to modify the eSIM label before moving to the next step;

Tap “>” (the right hand arrow) > Then either choose one of the preset label’s or type the name you want to use in the “Custom Label” box > Tap “Done” > Tap “Continue”

In this example the name of the esim was changed to “My eSIM” using the custom label box.

Please note; Option 5.2) won’t be offered to you if you have more than one eSIM already installed on your device, so a custom label can only be altered after the SIM install is complete.


Step 6. Configure the following settings as suggested:

  • Set Default Line to “Primary” > Tap “Continue”
  • Set iMessage & FaceTime to “Primary” > Tap “Continue”
  • Set Mobile Data to your previously chosen esim label, in this example “My eSIM”

Allow Mobile Data Switching is defaulted to off, choose you preference using the toggle > Tap “Done”

“Allow Mobile Data Switching” will allow your device to use mobile data from both lines depending on coverage and availability. You can change your selection later in settings.


Step 7. The eSIM is now installed and configured.

Important: Data Roaming MUST be ENABLED in order for the eSIM to work

Go to “Settings” > Tap “Mobile / Cellular Data” > Select desired SIM > Move the toggle switch to “On”
